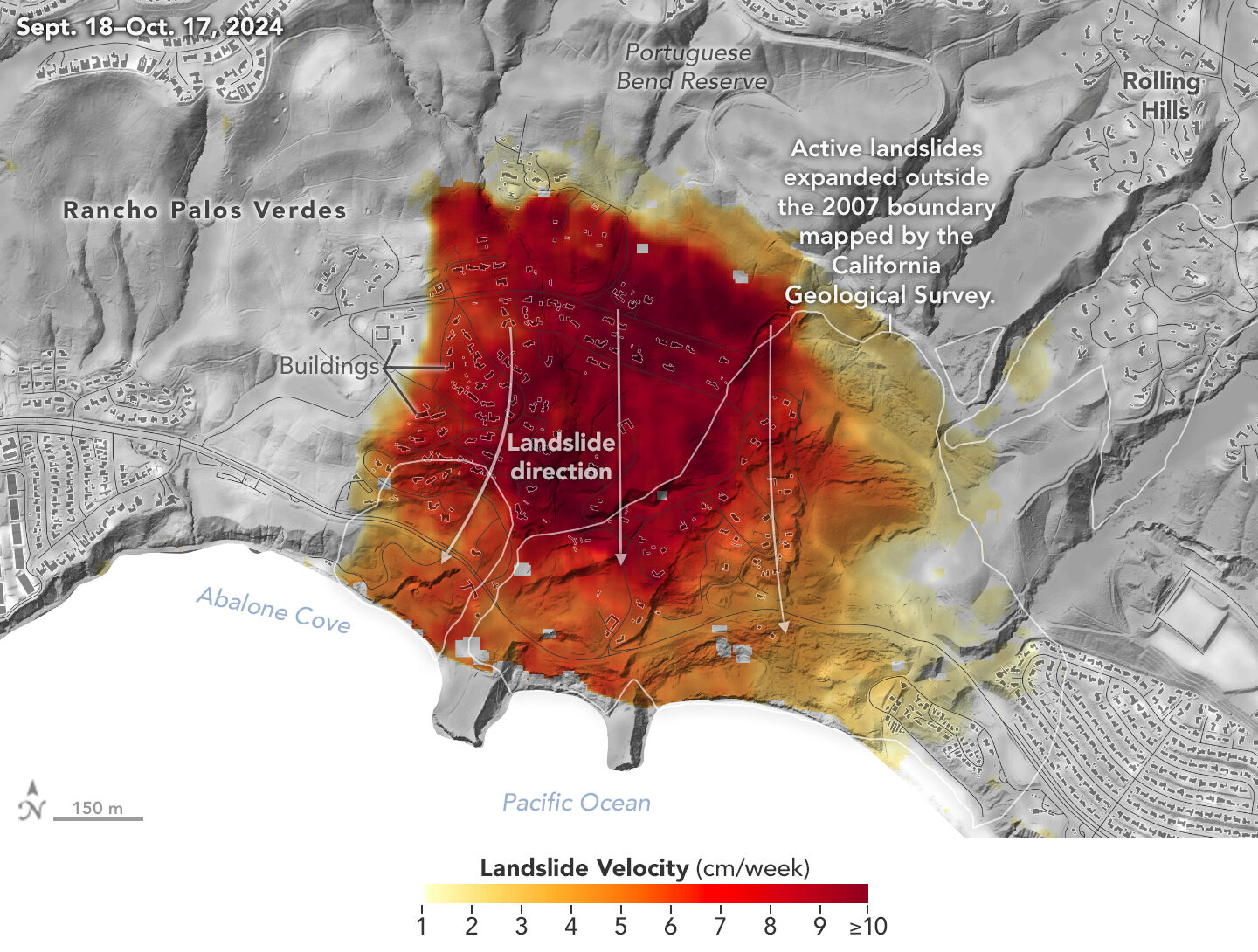

When a utility crew needs to know whether a stand of oak trees is encroaching on a 230-kV transmission line's clearance envelope, they no longer dispatch teams with tape measures and binoculars. A drone crosses the corridor at 60 to 80 meters altitude, firing laser pulses at up to 1.2 million times per second, and returns a centimeter-accurate three-dimensional model of every wire, pole, and branch in the right-of-way. Delivering on that promise requires a chain of physics, navigation, and signal processing that begins well before the aircraft lifts off.

The Physics of the Pulse — and Why Vegetation Changes Everything

Light Detection and Ranging is a time-of-flight measurement at its core. The sensor emits a collimated laser pulse and starts a precision timer. When photons return — scattered off a wire, a canopy surface, bare soil, or a building — the sensor records the elapsed interval. Half the round-trip time multiplied by the speed of light yields slant range. Sweep the beam across a rotating mirror and repeat that between 100,000 and 1.5 million times per second, and the landscape resolves into a dense constellation of georeferenced points: the point cloud.

Where this diverges decisively from photogrammetry is in return multiplicity. A photogrammetric pipeline builds surfaces from overlapping photographs and requires feature-matched pixels; where vegetation occludes the ground, the model fails. LiDAR sensors detect multiple discrete returns from a single pulse. The leading edge of a pulse hits an oak's upper canopy, scatters a measurable return, and the remainder of the beam continues downward — portions that slip through gaps in the foliage strike lower branches, then bare earth.

Modern sensors like the RIEGL miniVUX-2UAV use full-waveform digitization that captures the entire temporal shape of the return energy, not just discrete threshold crossings. Under mature forest canopy, that capability recovers ground returns where photogrammetry would produce nothing but green. The forestry sector adopted airborne LiDAR early precisely because terrain modeling under closed canopy is otherwise intractable: a LiDAR survey processed to separate first, intermediate, and last returns yields a bare-earth Digital Terrain Model alongside a canopy height model, giving individual tree heights across entire stands without a single ground crew measurement. The same logic drives archaeological prospection — ancient field systems and settlement earthworks buried beneath centuries of forest growth appear as subtle bare-earth anomalies, and survey campaigns in Central America have revealed dense pre-Columbian urban networks invisible to conventional remote sensing.

Georeferencing: The Navigation Stack That Makes Points Mean Something

A point cloud without position and orientation is just a list of ranges. Converting raw sensor measurements to real-world coordinates requires three tightly integrated subsystems: the LiDAR scanner, a high-precision GNSS receiver, and an Inertial Measurement Unit (IMU). The IMU records pitch, roll, and yaw at hundreds of times per second, so every laser pulse’s emission vector is known in three-dimensional space at the instant it fires. GNSS locates the aircraft in absolute space — but raw GNSS alone delivers only 1 to 3 meters of accuracy.

Two differential-correction approaches dominate field practice. Real-Time Kinematic (RTK) positioning streams corrections from a base station to the drone during flight, delivering centimeter-level accuracy with immediately usable georeferenced data — the natural choice for missions within reliable data-link range. Post-Processed Kinematic (PPK) logs raw GNSS observables on both the drone and a base station independently; software reconciles them after the flight into a precise trajectory. PPK handles longer baselines and interference environments that would break an RTK link, and it preserves the full observational record for reprocessing. Both methods draw on multiple satellite constellations — GPS, GLONASS, Galileo, and BeiDou — to maintain geometric diversity against signal dropout.

Before productive data collection begins, operators typically fly a figure-8 calibration pattern that exposes the IMU to varied accelerations and rotation rates, characterizing and removing systematic drift. This boresight calibration links the scanner's internal reference frame to the IMU's coordinate system. An improperly calibrated IMU introduces systematic angular errors that propagate across the entire swath — a subtle failure mode that can corrupt an otherwise clean dataset.

Point Density, Spec Sheets, and Real-World Standards

Point density — points per square meter on the ground — is the headline metric shaping what a survey can detect. It is a function of pulse repetition rate, flight altitude, aircraft speed, flight-line spacing, and scanner field of view, and the numbers cascade quickly.

The U.S. Geological Survey's 3D Elevation Program (3DEP) defines Quality Levels that anchor real-world standards. QL2, the baseline for most federal data, requires 2 points per square meter at 10 cm vertical RMSEz. QL0, added as lidar technology matured, demands 8 points per square meter and halves the vertical error to 5 cm. Survey-grade systems at low altitude easily exceed these floors: at 40 to 60 meters, capable scanners deliver 150 to 300 points per square meter. For corridor work, Natural Resources Canada guidelines recommend 10 to 25 pulses per square meter to resolve individual conductors and poles at engineering accuracy.

The RIEGL miniVUX-2UAV delivers 200,000 measurements per second at 1 to 1.5 cm accuracy at 50 meters. YellowScan's Ultra 3 delivers 3 cm precision and 2.5 cm accuracy at 640,000 pulses per second with 32 laser beams for vegetation penetration, weighing under 1 kg. DJI's Zenmuse L2, at 905 grams, combines a solid-state frame LiDAR with a high-accuracy IMU and a 20 MP mapping camera, claiming 4 cm vertical and 5 cm horizontal accuracy with five returns per pulse and coverage of 2.5 square kilometers per flight. A third-party comparison by Skyline Drones positions the L2 as “well suited for small, simpler projects that do not require a high level of detail, while YellowScan’s Surveyor Ultra 3 is built to give detailed results in more difficult conditions within complex scanning projects.”

Corridor Surveys and What the Accuracy Numbers Actually Mean

Linear infrastructure generates the most economically compelling drone LiDAR applications. A drone at 60 to 80 meters altitude collects a swath wide enough to capture conductor sag, towers, guy wires, and encroaching vegetation. In one documented hybrid mobile-mapping and UAV powerline survey, a Routescene system collected 950 million points across a 4.9-kilometer road corridor at an average density exceeding 1,400 points per square meter, achieving 1.9 cm vertical error. Classification algorithms separate the point cloud into wire, structure, and vegetation classes; software computes clearance distances and flags any tree within a defined proximity envelope automatically.

The economic case is direct. Field data collection time is reduced by up to 70 percent versus manual survey, according to corridor-mapping practitioners. Utilities report inspection cost reductions of up to 50 percent. A single classified point cloud supports vegetation encroachment reports, structure load models, right-of-way mapping, and digital-twin inputs — all from a dataset collected in hours.

The most rigorous surveys add independent ground check points — surveyed to a higher accuracy than the expected LiDAR floor — to validate final product accuracy independently of the system's internal claims.

The headline accuracy figures deserve scrutiny. Survey-grade systems achieve 1 to 2 cm vertical accuracy in open terrain under optimal georeferencing conditions; mid-range systems like the Zenmuse L2 land at 4 to 5 cm. Under dense canopy, where the sensor reconstructs ground position from sparse last returns, vertical accuracy degrades to 5 to 15 cm depending on vegetation density and sensor quality. The USGS 3DEP program targets 10 cm RMSEz for its QL1 and QL2 tiers — achievable with mid-grade sensors in open terrain, requiring survey-grade hardware in vegetated environments. GNSS outages in urban canyons or near interference sources corrupt trajectory segments that must be bridged with IMU-only dead reckoning, which accumulates error. PPK workflows mitigate this by preserving the full raw record for reprocessing. When the chain is executed properly, the result is a dataset that supports engineering-grade decisions from a platform that fits in a carry-on bag.
